| Type: | Cable roller tube entrance | Material: | Alloy |
|---|---|---|---|
| Warranty: | 1 year | Weight(kg): | 0.2-17 |
| Rated load(KN): | 5-400 | ||
| High Light: | hydraulic compression tool,hydraulic lug crimping tool |
||

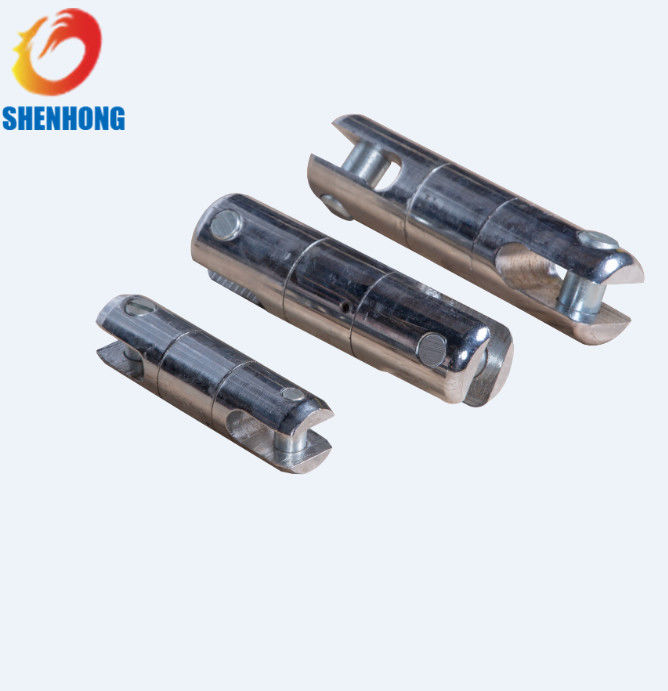

Alloy Overhead Line Construction Tools , Swivel Joints For Connecting wires and wire ropes
Application
In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.
Features
High strength, light weight, and good looking.
It can smoothly go through the machine traction pulley and the tension machine.
Technical Data For High Quality Swivel Joints For Connecting wires and wire ropes
| Model | Main Size(mm) | Rated Load(KN) | Weight(KG) | ||||
| A | B | C | D | E | |||
| SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| SLX-6.5 | 51 | 185 | 140 | 20 | 19 | 65 | 2 |
| SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| SL80Y | 57 | 207 | 152 | 24 | 20 | 80 | 2.4 |
| SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8 |
| SL320 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
| SL400 | 100 | 383 | 293 | 43 | 33 | 400 | 17 |
