| Sheave Number: | 1,2,3 | Rated Load(KN): | 5-80 |
|---|---|---|---|
| Weight(KG): | 1.2-6.5 | Application of wire rope diameter(mm): | 5.7-18.5 |
| Usage: | Hoisting | Application: | Power condtruction |
| High Light: | tower gin pole,diesel concrete mixer |
||

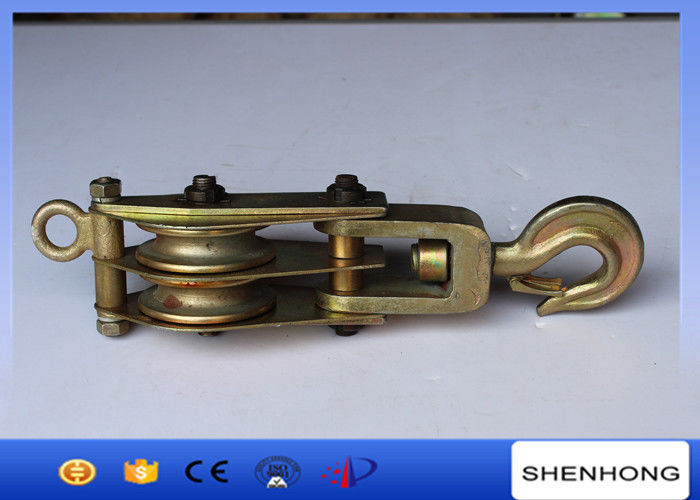

Tower Erection Tools Steel Wire Rope Lifting Pulley For Cable Pulling During Tower Erection
Application
Aluminum Alloy Wire Rope Lifting Pulley is used for lifting.It can be used in single, it also can be used as a block.
Characteristics
1. Material: Aluminum alloy
2. The type of Single wheel is open hook type.
3. The type of double wheel or third wheel is closed loop type.
3. It is made of aluminum alloy
4. Light weight
Technical Data
| Model Number |
Rated Load(KN) |
Sheave Number |
Application of wire rope diameter(mm) |
Weight(KG) |
| LZH5-1K | 5 | 1 | 5.7 | 1.2 |
| LZH10-1K | 10 | 1 | 7.7 | 1.5 |
| LZH10-2 | 10 | 2 | 5.7 | 1.75 |
| LZH10-3 | 10 | 3 | 5.7 | 2 |
| LZH15-2 | 15 | 2 | 7.7 | 2 |
| LZH15-3 | 15 | 3 | 12.5 | 2.75 |
| LZH20-1K | 20 | 1 | 11 | 2 |
| LZH20-2 | 20 | 2 | 7.7 | 2.5 |
| LZH20-3 | 20 | 3 | 7.7 | 2.75 |
| LZH30-1K | 30 | 1 | 12.5 | 3.5 |
| LZH30-2 | 30 | 2 | 11 | 4 |
| LZH30-3 | 30 | 3 | 7.7 | 4.2 |
| LZH50-1K | 50 | 1 | 15.5 | 4 |
| LZH50-2 | 50 | 2 | 12.5 | 4.5 |
| LZH50-3 | 50 | 3 | 11 | 4.75 |
| LZH80-1K | 80 | 1 | 18.5 | 6 |
| LZH80-2 | 80 | 2 | 15.5 | 6.5 |
